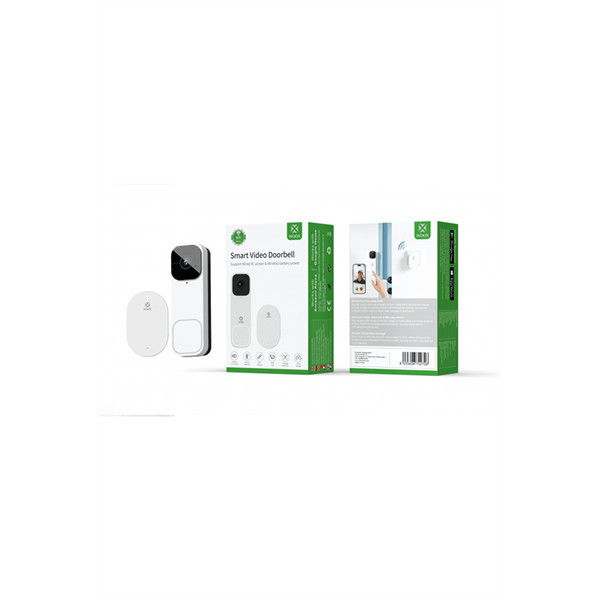

Woox Smart Home Video Kapucsengő - R4331 (3 féle tápellátás, kétirányú hangkapcsolat, adattárolás)

SPECIFICATIONS

Product Dimension

149x47x30 mm

Net Weight

217g

Power Cable Length

1.5m

Housing Material

ABS+PC

Housing Color

White

Housing Flame Retardance

UL94 V-0

Ingress Protection(IP)

IP65

Image Sensor

1/2.8" 3MP CMOS

Sensor Brand And Model

SMARTSENS, SC301IOT

Main Chipset Brand And Model

INGENIC, T31ZL

Lens Brand And Model

HS-Q118

Lens Focal Length

2.5mm

Aperture

F2.2

Power Supply

DC 5V1.5A, AC 8~24V

Working Power Consumption

0.75W

Standby Power Consumption

1.3mW

Live Stream Video Resolution

FHD(1536*2048) / SD(432*576)

Notification Image Resolution

SD(432*576)

Live Stream Effective Pixels

3MP

Optical pixel or lmage interpolation

Hardware straight out

Angle of View (H/V/D)

100°(Horizontal) * 135°(Vertical) * 170°(Diagonal)

Microphone Sensitive

-38dB

Noise Reduction

3D NR

Audio Input

Built-in 38db Mic

Audio Output

Built-in 8ohms Speaker

Audio Compression

G711U

Video Compression

H.265 / H.264

Frame Rate

Main Stream (HD) : 1Mbps; Substream (SD) : 384Kbps

IR CUT

Support

IR Distance

5m

Number Of Infrared Lamp Beads

4pcs

Night Vision Mode

Black & White mode

Wireless Standard

Wi-Fi IEEE 802.11 b/g/n

Wireless Frequency

2412 MHz ~ 2472 MHz

Wireless Encryption Protocol

WEP/WPA-PSK/WPA2-PSK

Working Temperature

-20°C - +50°C

Working Humidity

10~95%RH (no condensation)

Pairing Method

BLE mode, QR code

Two-way Talk

Support

Motion Detection

Support

Video Recording Duration

15s / 20s / 30s / 45s / 60s / 90s / 120s / Early Termination

Alarm time interval

Support

Alarm Sensitivity Level

Low / High

Surveillance Area Setting

Support

Humanoid Filtering

Support

Alarm Timer Settings

Support

Privacy Zones

Support

Anti Dismantling Alarm

Support

Cloud Storage

Support

Web RTC

Support

Quick Reply to Message

Support

Auto Reply Library

Support

Duration of Visitor's Message

5s / 10s

Call Timeout

10s - 25s Adjustable

Voice Change

Support

Siren Alarm

Support

Anti Flicker

Support

Local Storage SD Slot

up to 128GB

Voice Solution Configuration

Amazon Alexa, Google Assistant

Battery Type

2 * 18650 Rechargeable Lithium Battery

Battery Capacity

5200mAh

Battery Charging Time (Input DC 5V1A)

8 hours

Battery Life

supports 4-5 months,trigger 5 times a day

Chime

Support and included

Chime Volume

Low / Medium / High / Off

Chime Beep

8 Kinds

Number of Beep Cycles

1 / 2 / 3 Time

Approved Certification

CE-RED, ROHS, REACH
