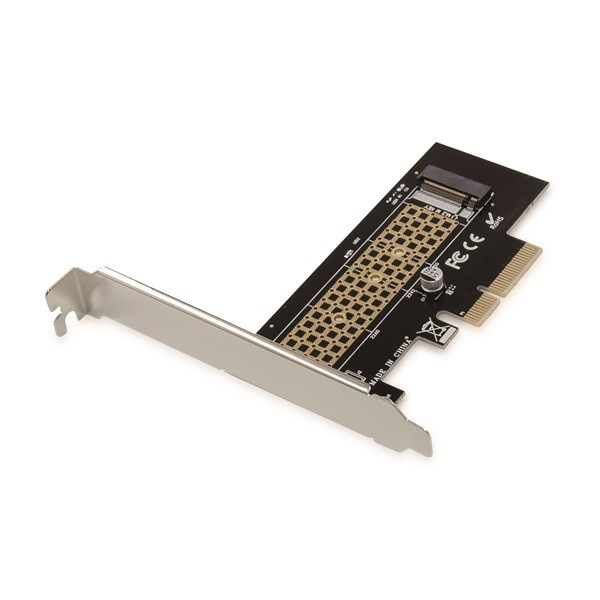

EMRICK05BS M.2 NVMe PCIe Card incl. Heat Sink
Model Number
EMRICK05BS
SKU
110013807
- Compliant with PCI Express Specification Revision 3.0
- Supports M.2 SSD in sizes 22*30mm, 22*42mm, 22*60mm and 22*80mm
- 1 x M Key M.2 socket for PCIe NVMe SSD with M/B+M Key connector
- Simple Plug and Play installation
- Aluminum heat sink for heat dissipation
| Logistics data | |
| Harmonized System (HS) code | 847330 |
| Customs product code (TARIC) | 8473302000 |
| Others | |
| Drive compatibility | M.2 PCIe NVMe SSD |
| Compatible operating systems | Windows XP
Windows Vista
Windows 7
Windows 8
Windows 10 |

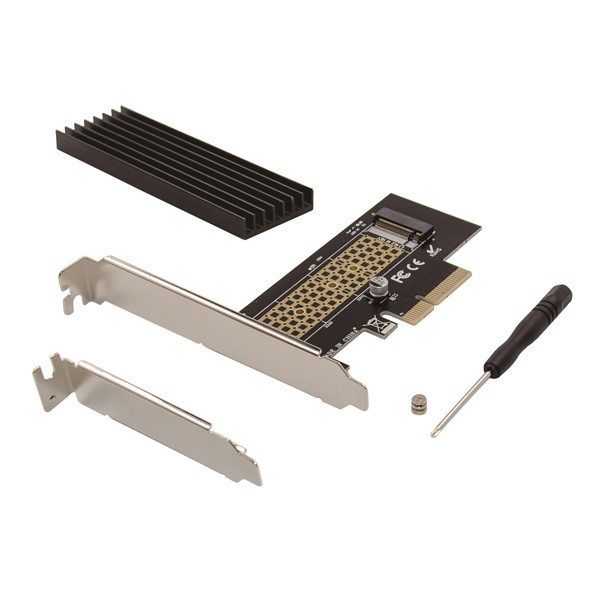

| Package Contents | EMRICK05BS
Multilingual quick installation guide
Screws and screwdriver
Low profile bracket
Aluminum heat sink |
| Physical Specifications | |
| Dimensions (W x D x H) | 40 x 18 x 102 mm |
| Product weight (kg) | 0,045 |
| General | |
| Color | Black |
| EAN | 4015867223680 |
| Model Number | EMRICK05BS |
| System specifications | |
| Connector | PCIe x4 |
| PCI version | PCIe 3.0 |
This M.2 NVMe SSD PCIe Adapter connects directly to the motherboard, and features ultra-fast PCIe 3.0 X4 lanes which transmit bandwidth up to 32GT/S. It also supports the majority of M.2 key M SSD drive sizes. This adapter improves system speed, and will enhance the efficiency of office and entertainment equipment.
* NOT compatible with B Key M.2 PCI x2 SSD or B Key M.2 SATA SSD
